Teco E510-401-H3N4-U VFD Drive 1 HP 460V

Series: , Enclosure: , HP: , AMPS: , Manufacturer: , Phase: ,

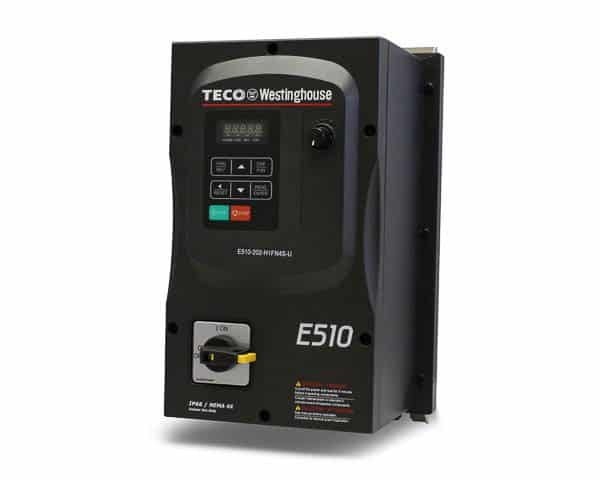

The E510 Nema 4 series AC Drive
Control today’s demanding motor driven applications in a cost effective manner.

  • Control Modes for V/F, and Sensorless Vector
  • Simple PLC Function Built-in
  • Advanced Regenerative Load Handling Capability
  • Conformal Coating on PC Boards
  • Integral Intelligent LED Keypad with 5 Digits
  • Flexible Input/ Output Configurations that Accept Normally Open or Normally Closed Signals
  • 0 to 599 Hz Speed Range
  • PID Control
  • Diagnostics Registers for Troubleshooting
  • Built-in Modbus Protocol via (RJ45 Interface)
  • Dedicated Pulse Follower Signal
  • UL, cUL, and CE Approved
  • Convenient Mounting & Design
SKU E510-401-H3N4-U Category Tags , ,

Original price was: $1,175.56.Current price is: $653.24.

*Prices may change due to the current economic environment. We apologize for any inconvenience this may cause.

Orders usually ship within 1-2 business days.

Questions

Contact us 360-694-8275
Hours: 9am to 5pm pacific time.
[email protected]

credit-card-logos

Description

The E510 series are ideal for fans, pumps, mixing, and conveyors installed in non-ideal environments such as, areas in contact with corrosive solutions or processing areas that require periodic wash down.


Features

  • Parameters grouped by function
  • Built-in PLC Functionality
  • PID Process Control Loop
    • Sleep Mode
    • 0-10VDC or 4-20mA Feedback
    • Loss of feedback or tracking detection
  • Built-in Modbus Protocol
    • (RJ45 Interface)
  • 5 Digit operator’s keypad
    • Scalable Display
    • Programming parameters
    • Diagnostics monitoring
  • Built-in Disconnect and Speed Pot on selected models
    • 230V, 1Ø (0.5 to 3 HP)
    • 460V, 3Ø (1 to 15 HP)
  • Digital and Analog Inputs and outputs have extremely fast (~4 msec) update time
  • Auto Run Mode (cyclic operation)
  • Power loss ride through
  • Automatic Voltage Regulation (AVR)
    • Stabilizes output voltage against
    • fluctuating input voltage
